Product Summary
The MAX6333UR19D3-T is a Low-Power μP Reset Circuit. The applications of the MAX6333UR19D3-T include Pentium II™ Computers, Computers, Controllers, Intelligent Instruments, Critical μP/μC Power Monitoring, Portable/Battery-Powered Equipment and Automotive.
Parametrics
MAX6333UR19D3-T absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC : -0.3V to +6V; (2)Push/Pull RESET, RESET : -0.3V to (VCC + 0.3V); (3)Open-Drain RESET : -0.3V to +6V; (4)Input Current (VCC) : 20mA; (5)Output Current (RESET, RESET) : 20mA; (6)Rate of Rise, VCC : 100V/μs; (7)Continuous Power Dissipation (TA = +70℃) SOT23-3 (derate 4mW/℃ above +70℃) : 320mW; (8)Operating Temperature Range : -40℃ to +85℃; (9)Storage Temperature Range : -65℃ to +160℃; (10)Lead Temperature (soldering, 10sec) : +300°C.
Features
MAX6333UR19D3-T features: (1)Ultra-Low 0.7V Operating Supply Voltage; (2)Low 3.3μA Supply Current; (3)Precision Monitoring of 1.8V and 2.5V Power-Supply Voltages; (4)Reset Thresholds Available from 1.6V to 2.5V, in Approximately 100mV Increments; (5)Fully Specified over Temperature; (6)Three Power-On Reset Pulse Widths Available (1ms min, 20ms min, 100ms min); (7)Low Cost; (8)Three Available Output Structures: Push/Pull RESET, Push/Pull RESET, Open-Drain RESET; (9)Guaranteed RESET/RESET Valid to VCC = 0.7V(MAX6332/MAX6333); (10)Power-Supply Transient Immunity; (11)No External Components; (12)3-Pin SOT23 Package; (13)Pin-Compatible with MAX809/MAX810and MAX6326/MAX6327/MAX6328.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

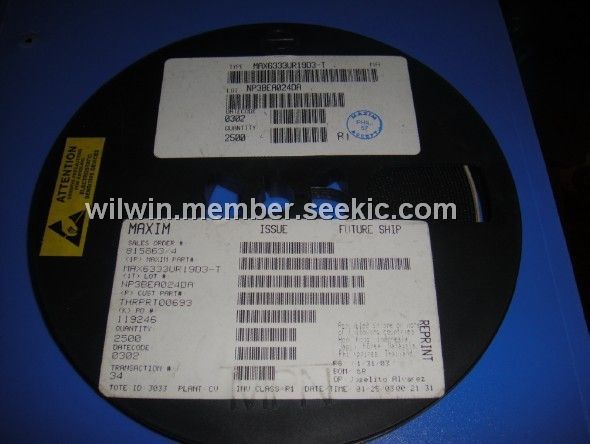

 MAX6333UR19D3-T |
Maxim Integrated Products |
Supervisory Circuits Integrated Circuits (ICs) |
Data Sheet |
Negotiable |
|
||||||||||||
