Product Summary

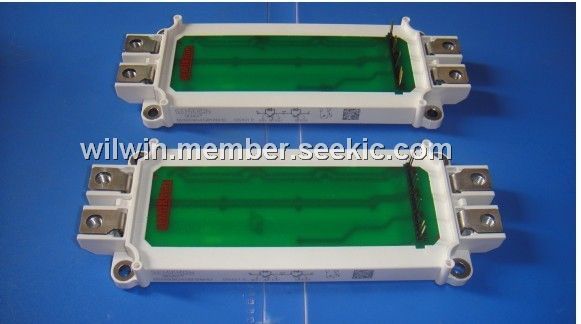

The SEMIX904GB126HD is a Trench IGBT Module. The applications of the SEMIX904GB126HD include AC inverter drives, UPS and Electronic welders.

Parametrics

SEMIX904GB126HD absolute maximum ratings: (1)VCES : 1200V; (2)IC : 910(640)A; (3)ICRM : 1200A; (4)VGES : ±20V; (5)Tvj,Tstg : –40℃ to +150(125)℃; (6)Visol : 4000V.

Features

SEMIX904GB126HD features: (1)Homogeneous Si; (2)Trench = Trenchgate Technology; (3)VCE(sat) with positive temperature coefficient; (4)High short circuit capability.

Diagrams

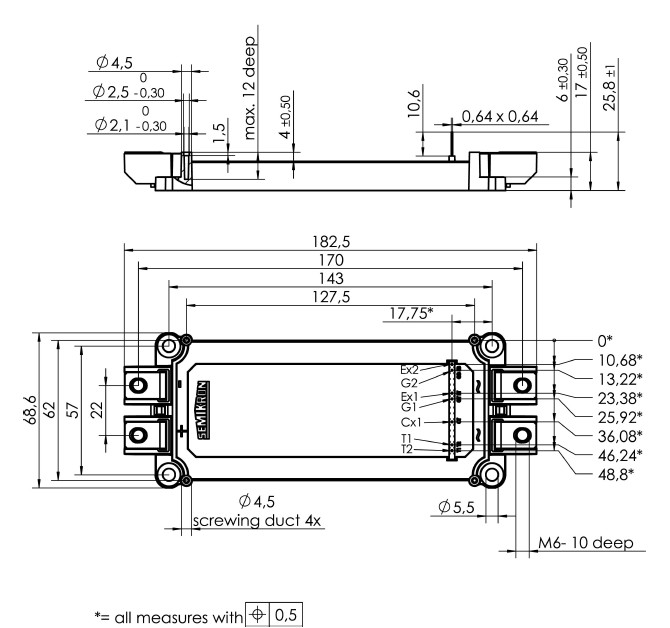

SEMIX904GB126HD dimension
