Product Summary

The MC68332ACEH25 is a highly-integrated 32-bit microcontroller, combines high-performance data manipulation capabilities with powerful peripheral subsystems. The MC68332ACEH25 is built up from standard modules that interface through a common intermodule bus (IMB). Standardization facilitates rapid development of devices tailored for specific applications. The MC68332ACEH25 incorporates a 32-bit CPU (CPU32), a system integration module (SIM), a time processor unit (TPU), a queued serial module (QSM), and a 2-Kbyte static RAM module with TPU emulation capability (TPURAM).

Parametrics

MC68332ACEH25 absolute maximum ratings: (1)Core Processor: CPU32; (2)Core Size: 32-Bit; (3)Speed: 25MHz; (4)Connectivity: EBI/EMI, SCI, SPI, UART/USART; (5)Peripherals: POR, PWM, WDT; (6)Number of I /O: 15; (7)Program Memory Type: ROMless; (8)RAM Size: 2K x 8; (9)Voltage - Supply (Vcc/Vdd): 4.5V to 5.5 V; (10)Oscillator Type: Internal; (11)Operating Temperature: -40 to 85℃.

Features

MC68332ACEH25 features: (1)Central Processing Unit (CPU32); (2)System Integration Module (SIM); (3)Time Processor Unit (TPU); (4)Queued Serial Module (QSM); (5)Static RAM Module with TPU Emulation Capability (TPURAM).

Diagrams

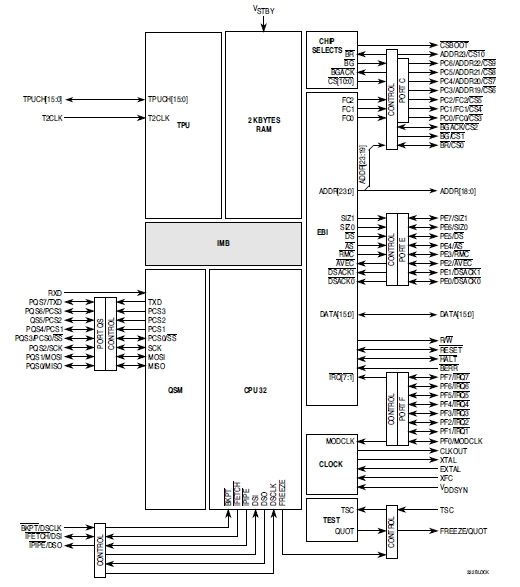

MC68332ACEH25 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC68332ACEH25
MC68332ACEH25
Freescale Semiconductor
32-bit Microcontrollers (MCU) 32BIT MCU 2KRAM TPU QSM
Data Sheet
0-1: $16.42
1-25: $14.89
25-50: $11.84
50-100: $10.90
