Product Summary
The MAX1874ETE-T is an USB/AC Adapter. The applications of the MAX1874ETE-T include PDAs, Cell Phones, Wireless Appliances and Digital Cameras.
Parametrics
MAX1874ETE-T absolute maximum ratings: (1)DC, DCOK to GND : -0.3V to +20V; (2)DCLV, BYP, USB, UOK, DCI, REF, USEL, THRM, EN, BATT, CHG, PON to GND : -0.3V to +7V; (3)PGND to GND : -0.3V to +0.3V; (4)Continuous Current (DCLV) : 1.1A; (5)Continuous Current (USB) : 0.6A; (6)Continuous Power Dissipation (TA = +70℃) 16-Pin 5mm x 5mm Thin QFN (derate 21.3mW/℃ above +70℃) : 1.7W; (7)Operating Temperature Range : -40℃ to +85℃; (8)Storage Temperature Range : -65℃ to +150℃; (9)Maximum Junction Temperature : +150℃; (10)Lead Temperature (soldering, 10s) : +300℃.
Features
MAX1874ETE-T features: (1)Charge from USB or AC Adapter; (2)Automatic Switchover to AC Adapter; (3)Thermal Limiting Simplifies Board Design; (4)Small, High-Power 16-Pin Thin QFN Package; (5)Input Protection Up to 18V; (6)Soft-Start; (7)Automatic Battery-to-Input Load Switch.

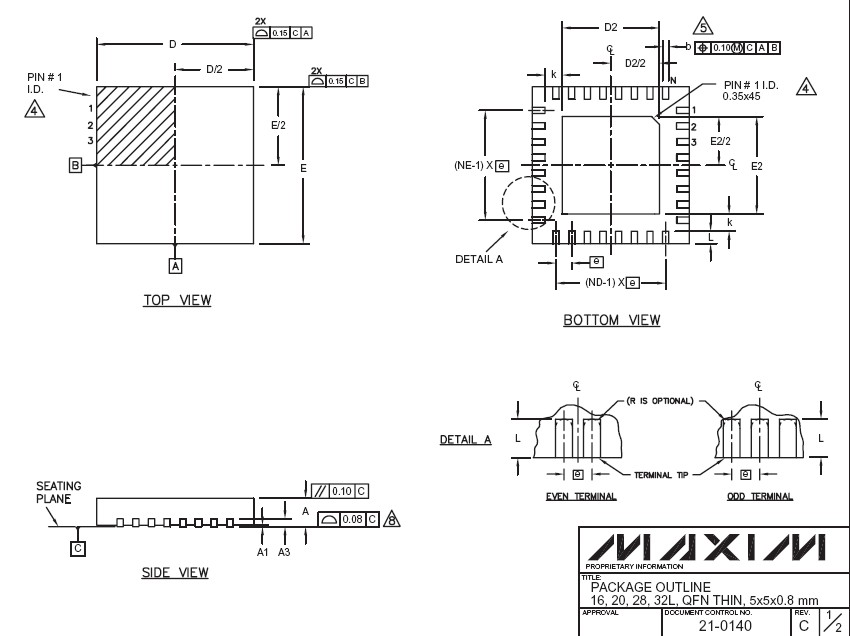

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX1874ETE-T |
Maxim Integrated Products |
Battery Management Dual-Input USB/AC Adapter 1-Cell Li+ |
Data Sheet |
Negotiable |
|
||||||||||||
