Product Summary
The TIL309 is a solid-state displays with integral TTL MSI circuit chip.
Parametrics
TIL309 absolute maximum ratings: (1)Supply voltage, VCC Continuous : 5.5 V; (2)Nonrepetitive peak, tw ≤ 100 ms : 7 V; (3)Input voltage : 5.5 V; (4)Operating case temperature range, TC : 0℃ to 85℃; (5)Storage temperature range : –25℃ to 85℃.
Features
TIL309 features: (1)6,9-mm (0.270-Inch) Character Height; (2)TIL308 Has Left Decimal; (3)TIL309 Has Right Decimal; (4)Easy System Interface; (5)Wide Viewing Angle; (6)Internal TTL MSI Chip With Latch, Decoder and Driver; (7)Constant-Current Drive for Light-Emitting Diodes.

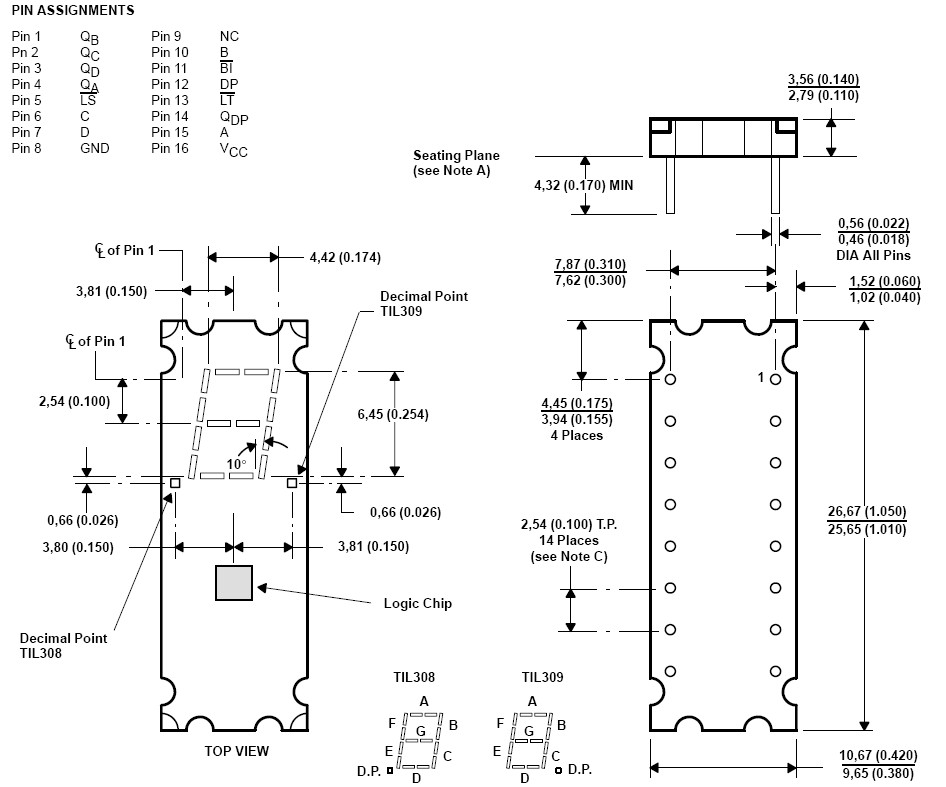

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIL309 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TIL300 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIL3009 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIL300A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIL3010 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIL3011 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIL3012 |
Other |
|
Data Sheet |
Negotiable |
|
||||
