Product Summary

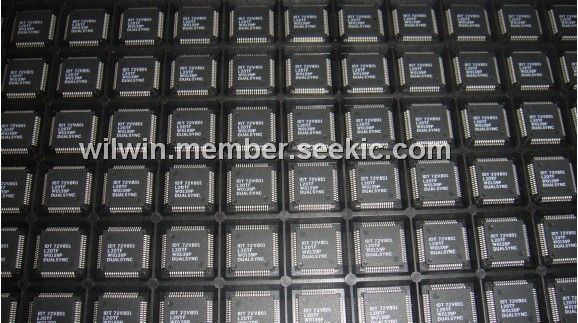

The IDT72V801L20TF is a 3.3 VOLT DUAL CMOS SyncFIFO.
Parametrics
IDT72V801L20TF absolute maximum ratings: (1)VTERM Terminal Voltage with Respect to GND: –0.5 to +5 V; (2)TSTG Storage Temperature: –55 to +125 ℃; (3)IOUT DC Output Current: –50 to +50 mA.
Features
IDT72V801L20TF features: (1)Offers optimal combination of large capacity, high speed, design flexibility and small footprint; (2)Ideal for prioritization, bidirectional, and width expansion applications; (3)10 ns read/write cycle time; (4)5V input tolerant; (5)Separate control lines and data lines for each FIFO; (6)Separate Empty, Full, programmable Almost-Empty and Almost-Full flags for each FIFO; (7)Enable puts output data lines in high-impedance state; (8)Space-saving 64-pin plastic Thin Quad Flat Pack TQFP/STQFP); (9)Industrial temperature range (-40℃ to +85℃) is available.

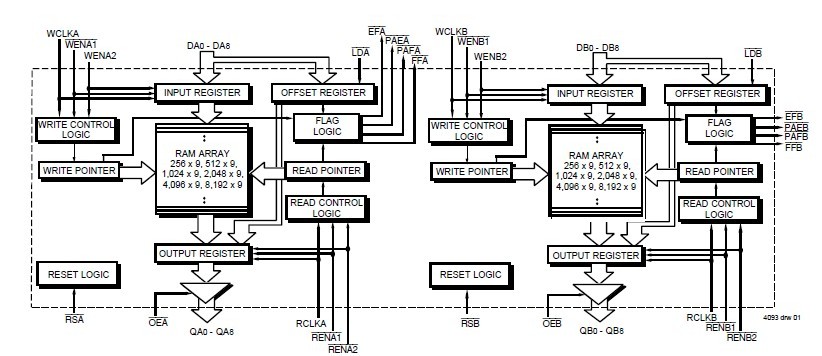

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT72V801L20TF |
|
IC SYNC FIFO 256X9 20NS 64QFP |
Data Sheet |
|
|
||||||
|
IDT72V801L20TF8 |
|
IC SYNC FIFO 256X9 20NS 64QFP |
Data Sheet |
|
|
||||||
