Product Summary
The 6MBP300RD060-07 is one member of the 6MBP300RD060 family which is designed as the IGBT-IPM. It is low power loss, soft switching, high performance and high reliability.
Parametrics
Absolute maximum ratings:(1)DC bus voltage: 0 to 450 V;(2)DC bus voltage (surge): 0 to 500 V;(3)DC bus voltage (short operating): 200 to 400 V;(4)Collector-Emitter voltage: 0 to 600 V;(5)Junction temperature: 150℃ ;(6)Input voltage of power supply for Pre-Driver: 0 to 20 V;(7)Input signal voltage: 0 to Vz V;(8)Input signal current: 1 mA;(9)Alarm signal voltage: 0 to Vcc V;(10)Alarm signal current: 15 mA;(11)Storage temperature: -40℃ to +125℃ ;(12)Operating case temperature: -20℃ to +100℃ ;(13)Isolating voltage (Case-Terminal): AC2.5 kV.
Features
Features:(1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

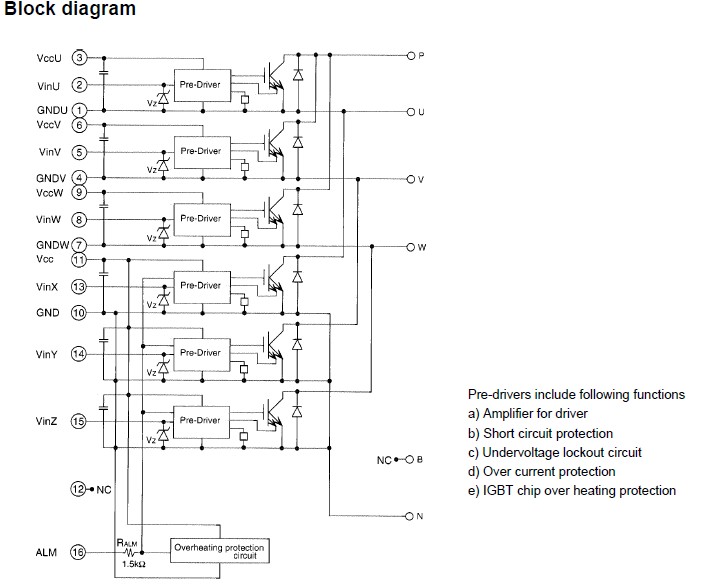

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

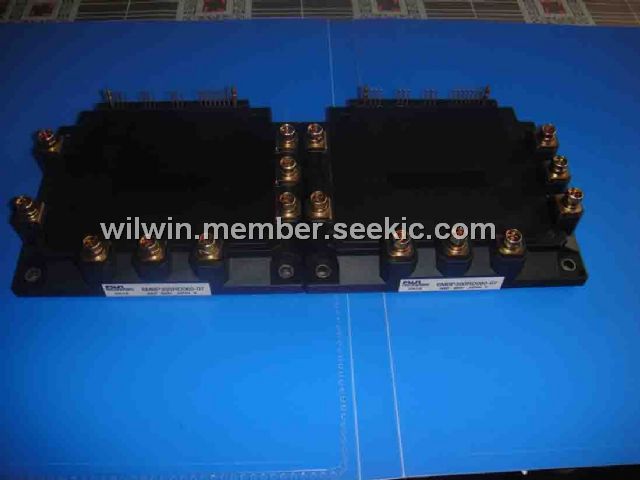

 6MBP300RD060-07 |
Other |
|
Data Sheet |
Negotiable |
|
||||
