ADV7123KSTZ50

ADV7123KSTZ50, digital-to-analog converter, 7V, 6mW, QFP, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~6.00

PartNumber:: ADV7123KSTZ50

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Carol's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-22

From Other Seller

Part Number:ADV7123KSTZ50
US $5.00 - 6.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

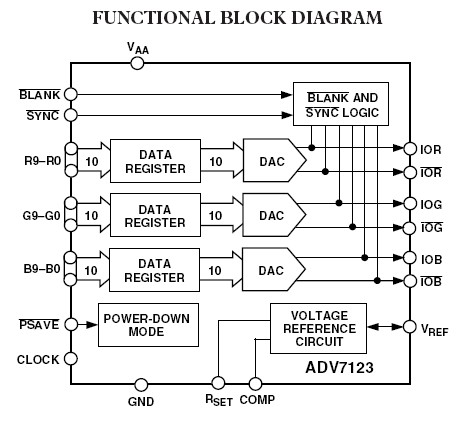

The ADV7123KSTZ50 is a triple high speed, digital-to-analog converter on a single monolithic chip. The ADV7123KSTZ50 consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. The applications of the ADV7123KSTZ50 include Digital Video Systems (1600X1200 @ 100 Hz), High Resolution Color Graphics, Digital Radio Modulation, Image Processing, Instrumentation, Video Signal Reconstruction.

Parametrics

ADV7123KSTZ50 absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on any Digital Pin: GND – 0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): –40 to +85℃; (4)Storage Temperature (TS): –65 to +150℃; (5)Junction Temperature (TJ): 150℃; (6)Lead Temperature (Soldering, 10 sec): 300°C; (7)Vapor Phase Soldering (1 Minute): 220°C; (8)IOUT to GND2: 0 V to VAA.

Features

ADV7123KSTZ50 features: (1)330 MSPS Throughput Rate; (2)Triple 10-Bit D/A Converters; (3)SFDR –70 dB at fCLK = 50 MHz; fOUT = 1 MHz; (4)–53 dB at fCLK = 140 MHz; fOUT = 40 MHz; (5)RS-343A/RS-170 Compatible Output; (6)Complementary Outputs; (7)DAC Output Current Range 2 mA to 26 mA; (8)TTL Compatible Inputs; (9)Internal Reference (1.23 V); (10)Single-Supply 5 V/3.3 V Operation; (11)48-Lead LQFP Package; (12)Low Power Dissipation (30 mW Min @ 3 V); (13)Low Power Standby Mode (6 mW Typ @ 3 V); (14)Industrial Temperature Range (–40 to +85℃).
