Product Summary

The G104SN02 V.2 is a Color Active Matrix Liquid Crystal Display. The G104SN02 V.2 is composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support SVGA (800(H) × 600(V)) screen and 16.2M (RGB 8 bits) or 262k colors (RGB 6 bits). LED driving board for backlight unit is included in G104SN02 V.2 and the LED unit is replaceable. All input signals are LVDS interface and compatible with G104SN02 V1. G104SN02 V.2 designed with wide viewing angle; wide temperature and long life LED backlight is well suited for industial applications. The G104SN02 V.2 is a RoHS product.

Parametrics

G104SN02 V.2 absolute maximum ratings of 型号 are (1)Operating Temperature TOP: -30, +85 [℃]; (2)Operation Humidity HOP: 5, 95 [%RH]; (3)Storage Temperature TST: -30, +85 [℃]; (4)Storage Humidity HST: 5, 95 [%RH]; (5)Logic/LCD Drive Vin: -0.3, +4.0 [Volt].

Features

G104SN02 V.2 features: (1)( V )Preliminary Specifications; (2)( )Final Specifications.

Diagrams

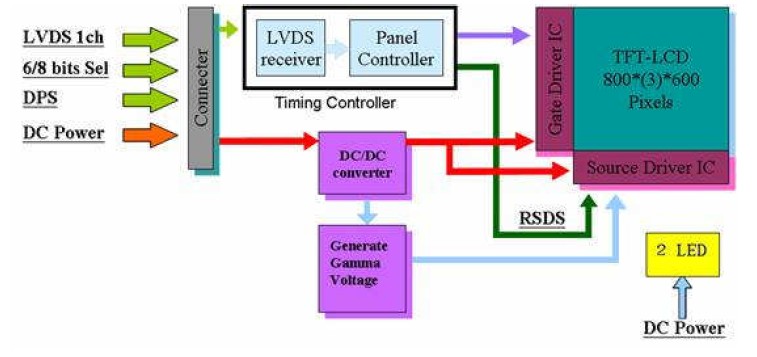

 G104SN02 V.2 pin connection
