Product Summary

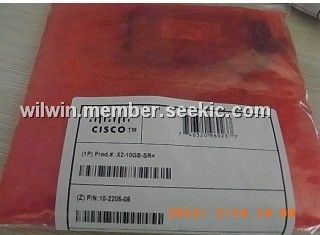

The X2-10GB-SR is a highly integrated, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. It is ideally suited for 10 GbE datacom (belly-to-belly for high density applications) and storage area network (SAN/NAS) applications based on the IEEE 802.3ae standard as well as the Fiber Channel 10GFC Rev. 4.0.

Parametrics

X2-10GB-SR absolute maximum ratings: (1)Typ.P.Cons.: ＜1.8W; (2)Temp. Range: 0 to 70 ℃; (3)Power Supply: APS, 3.3, 5V.

Features

X2-10GB-SR features: 1)Compatible with X2 MSA Rev. 2.0b; (2)Support of IEEE 802.3ae 10GBASE-SR at 10.3125 Gbit/s(TRP10GVP2003); (3)Compliance to Fibre Channel 1200-M5-SN-I, 1200-M5E-SN-I, 1200-M6-SN-I at 10.51875 Gbit/s (TRP10GVP2103); (4)Transmission distance up to 300m (special MMF); (5)Power Consumption 1.8 W (typ.); (6)Temperature Range 0 to 70℃; (7)Laser Class 1M compliant; (8)Vertical Cavity Surface Emitting Laser at 850 nm (VCSEL); (9)SC duplex connector; (10)Hot pluggable 70-pin connector with XAUI electrical interface; (11)Management and control via MDIO 2-wire interface; (12)Compliant with the EU RoHS 6 environmental requirements.
