Product Summary

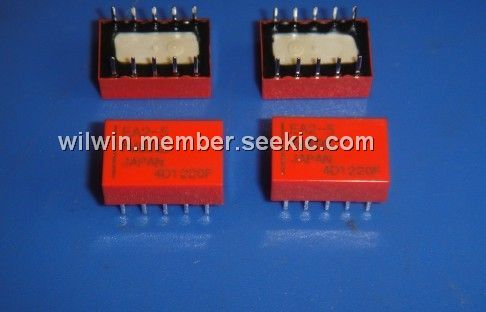

The EA2-5 is a miniature signal relay. The EA2-5 series has reduced package size and power consumption to other NEC Conventional relays. Furthermore, it complies with 1500 V surge-voltage requirement of FCC part 68 by the unique structure and the efficient magnetic circuit The applications of the EA2-5 include electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equipment.

Parametrics

EA2-5 absolute maximum ratings: (1) Maximum switching power : 30W; (2) Maximum switching voltage : 220Vdc; (3) Maximum switching current : 1A; (4) Maximum carrying current : 2A; (5) Initial contact resistance: 50 mW typ. (Initial); (6) Ambient temperature : –40℃ to 85℃; (7) Weight : Approximately 1.5 grams.

Features

EA2-5 features: (1)Low power consumption; (2)Compact and light weight; (3)2 form c contact arrangement; (4)Low magnetic arrangement; (5)Breakdown voltage : 1000 Vac (surge voltage 1500 V), FCC Part 68 compliant; (6)Tube packaging; (7)UL recognized (E73266), CAS certified (LR46266).

Diagrams

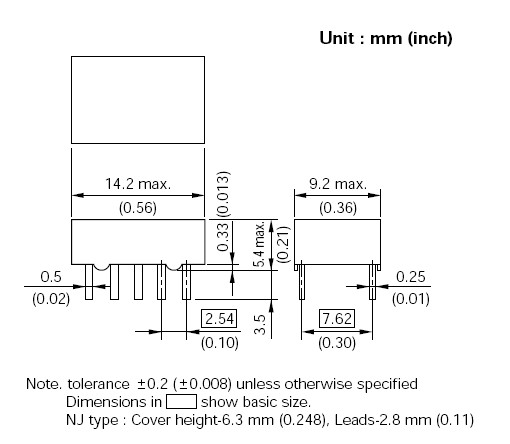

EA2-5 dimension
