Product Summary

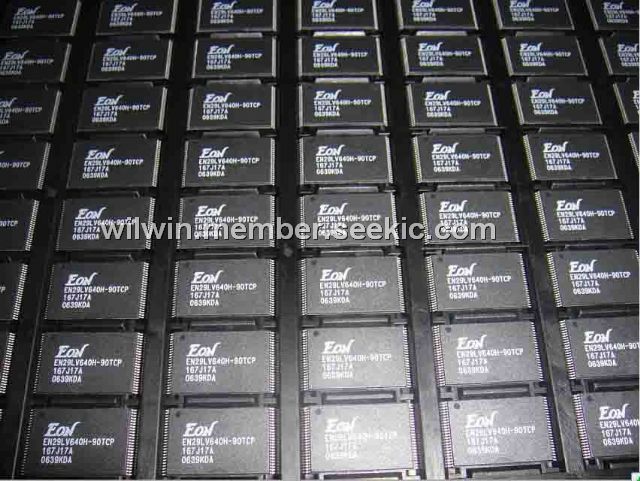

The EN29LV640H-90TCP is a 64-Megabit ( 4Mx16 ), electrically erasable, read/write nonvolatile flash memory. Any word can be programmed typically in 8μs. This device is entirely command set compatible with the JEDEC single-power-supply Flash standard. The EN29LV640H-90TCP is designed to allow either single Sector or full Chip erase operation, where each Sector Group can be protected against program/erase operations or temporarily unprotected to erase or program. The device can sustain a minimum of 100K program/erase cycles on each Sector.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: -65 to +125℃; (2)Plastic Packages: -65 to +125℃; (3)Ambient Temperature With Power Applied: -55 to +125℃; (4)Output Short Circuit Current: 200 mA; (5)Voltage with Respect to Ground: VCC, -0.5 to 4.0 V; A9, OE#, WP#/ACC and RESET# 2: -0.5 to +11.5 V; All other pins 3: 0.5 to VCC + 0.5 V.

Features

Features: (1)Single power supply operation: Full voltage range: 2.7 to 3.6 volts for read, erase and program operations; (2)Low power consumption (typical values at 5 MHz): 9 mA typical active read current; 20 mA typical program/erase current; Less than 1 μA current in standby or automatic sleep mode; (3)JEDEC standards compatible: Pinout and software compatible with singlepower supply Flash standard; (4)Manufactured on 0.18 μm process technology; (5)Flexible Sector Architecture: One hundred and twenty-eight 32K-Word /64K-byte sectors; (6)Minimum 100K program/erase endurance cycles.
