Product Summary
The MAX4944LELA+T is a Single-Supply Rail-to-Rail Op Amps. The applications of the MAX4944LELA+T include Portable Equipment, Battery-Powered Instruments, Data Acquisition, Signal Conditioning and Low-Voltage Applications.
Parametrics
MAX4944LELA+T absolute maximum ratings: (1)Supply Voltage (VCC to VEE) : 7V; (2)Common-Mode Input Voltage : (VCC + 0.3V) to (VEE - 0.3V); (3)Differential Input Voltage : ±(VCC - VEE); (4)Input Current (IN+, IN-, NULL1, NULL2) : ±10mA; (5)Output Short-Circuit Duration : Indefinite short circuit to either supply; (6)Voltage Applied to NULL Pins : VCC to VEE; (7)Continuous Power Dissipation (TA = +70℃) 8-Pin Plastic DIP (derate 9.09mW/℃ above +70℃) : 727mW; (8)8-Pin SO (derate 5.88mW/℃ above +70℃) : 471mW; (9)8-Pin CERDIP (derate 8.00mW/℃ above +70℃) : 640mW; (10)8-Pin μMAX (derate 4.1mW/℃ above +70℃) : 330mW; (11)14-Pin Plastic DIP (derate 10.00mW/℃ above +70℃) : 800mW; (12)14-Pin SO (derate 8.33mW/℃ above +70℃) : 667mW; (13)14-Pin CERDIP (derate 9.09mW/℃ above +70℃) : 727mW; (14)Operating Temperature Ranges MAX49_C_ _ : 0℃ to +70℃; (15)MAX49_E_ _ : -40℃ to +85℃; (16)MAX49_M_ _ : -55℃ to +125℃; (17)Junction Temperatures MAX49_C_ _/E_ _ : +150℃; (18)MAX49_M_ _ : +175℃; (18)Storage Temperature Range : -65℃ to +150℃; (19)Lead Temperature (soldering, 10sec) : +300℃.
Features
MAX4944LELA+T features: (1)Low-Voltage Single-Supply Operation (+2.7V to +6V); (2)Rail-to-Rail Input Common-Mode Voltage Range; (3)Rail-to-Rail Output Swing; (4)500kHz Gain-Bandwidth Product; (5)Unity-Gain Stable; (6)150μA Max Quiescent Current per Op Amp; (7)No Phase Reversal for Overdriven Inputs; (8)200μV Offset Voltage; (9)High Voltage Gain (108dB); (10)High CMRR (90dB) and PSRR (110dB); (11)Drives 1kΩ Load; (12)Drives Large Capacitive Loads; (13)MAX495 Available in μMAX Package-8-Pin SO.

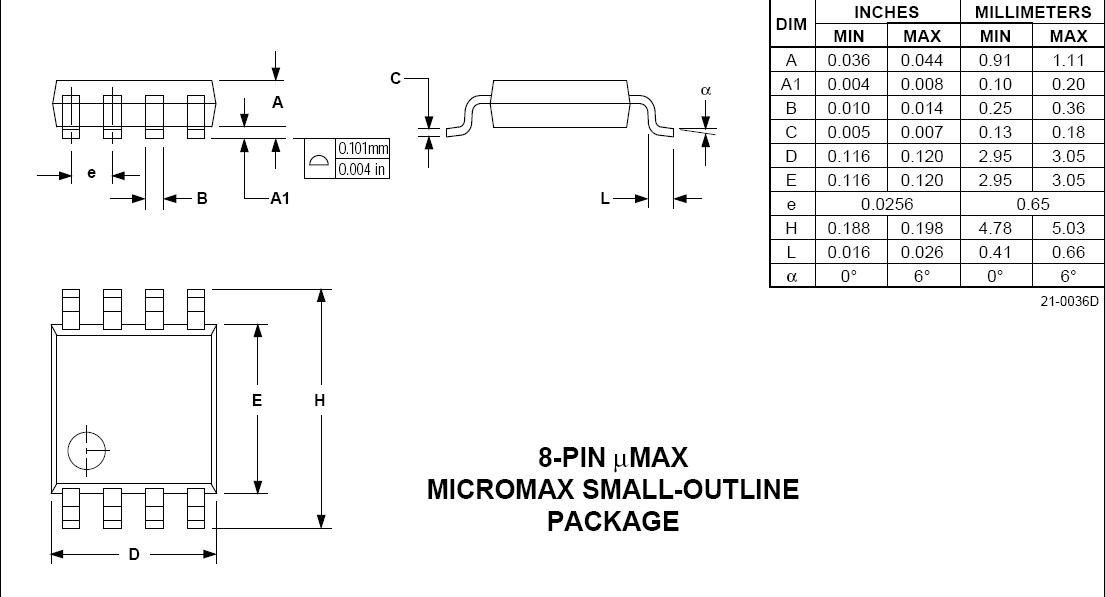

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4944LELA+T |
Maxim Integrated Products |
Current & Power Monitors & Regulators Overvoltage-Protect Controller |
Data Sheet |
|
|
||||||||||||
