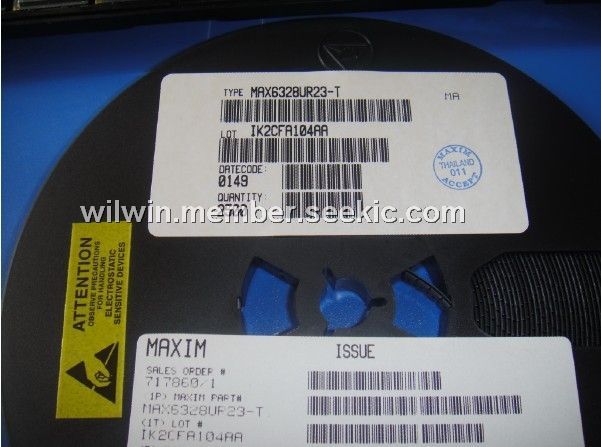

MAX6328UR23-T

microprocessor (μP) supervisory circuit, SOT, -0.3V to +6V, 20mA, 174mW, Low Cost, No External Components

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.35

PartNumber:: MAX6328UR23-T

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Carol's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-24

From Other Seller

Part Number:MAX6328UR23-T
US $0.15 - 0.35
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX6328UR23-T is a microprocessor (μP) supervisory circuit. It monitors the power supplies in μP and digital systems. The MAX6328UR23-T provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with 2.5V, 3V, 3.3V, and 5V powered circuits. The applications of the device include Computers, Intelligent Instruments, Controllers, Automotive, Critical μP and μC, Portable/Battery-Powered, Power Monitoring and Equipment.

Parametrics

MAX6328UR23-T absolute maximum ratings: (1)Terminal Voltage (with respect to GND): -0.3V to +6V; (2)RESET, RESET (push-pull): -0.3V to (VCC + 0.3V); (3)RESET (open drain): -0.3V to +6V; (4)Input Current (VCC): 20mA; (5)Output Current (RESET, RESET): 20mA; (6)Rate of Rise (VCC): 100V/μs; (7)Continuous Power Dissipation: 174mW; (8)Operating Temperature Range: -40 to +85℃; (9)Storage Temperature Range: -65 to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

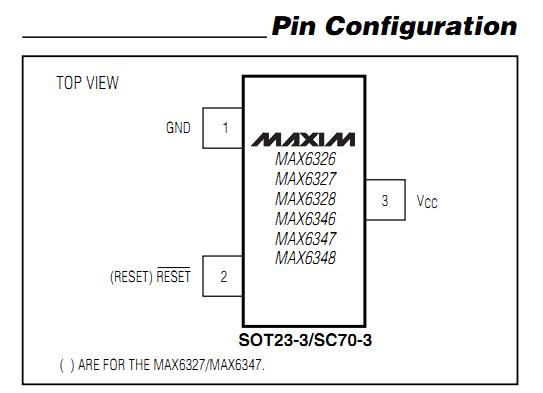

MAX6328UR23-T features: (1)Ultra-Low 1μA (max) Supply Current; (2)Precision Monitoring of 2.5V, 3V, 3.3V, and 5V Power-Supply Voltages; (3)Reset Thresholds Available from 2.2V to 4.63V; (4)Fully Specified Over Temperature; (5)100ms (min) Power-On Reset Pulse Width; (6)Low Cost; (7)Available in Three Versions: Push-Pull RESET, Push-Pull RESET, and Open-Drain RESET; (8)Power-Supply Transient Immunity; (9)No External Components; (10)3-Pin SC70/SOT23 Packages; (11)Pin Compatible with MAX803/MAX809/MAX810.
