Product Summary
The HDSL-7002 is a Integrated Circuit. The HSDL-7002 modulates and demodulates electrical pulses from HSDL-3201 IrDA transceiver module and other IrDA compliant transceivers. The HSDL-7002 can be used with a microcontroller/microprocessor that has a serial communication interface (UART). Prior to communication, the processor selects the transmis¬sion baud rate. Serial data is then transmitted or received at the prescribed data rate. The HSDL-7002 consists or two state machines – the SIR (Serial InfraRed) Encode and SIR Decode blocks. It also contains a sequential block Clock Divide that synthesizes the required internal signal. The HSDL-7002 can be placed into the Internal Clock Mode or External Clock Mode. An external crystal is needed for the Internal Clock Mode. In applications where the external 16XCLK signal is provided, a crystal is not needed. There are two data transmission modes. Data can be trans¬mitter and received in either a standard 3/16 modulation mode or a 1.63 μs pulse mode.
Parametrics
HDSL-7002 absolute maximum ratings: (1)Storage Temperature : -65 to +150℃; (2)Operating Temperature : -40 to +85℃; (3)Output Current : -20 to 15mA; (4)Power Dissipation : 0.46W; (5)Input/Output Voltage : -0.5 to Vcc+0.5; (5)Power Supply Voltage : -0.5 to 7.0V; (6)Electrostatic Protection : 4000V.
Features
HDSL-7002 features: (1)Fully Compliant to IrDA Physical Layer Specification 1.4 from 9.6 kbit/s to 115.2 kbit/s (SIR); (2)Interfaces with IrDA Compliant IR Transceiver; (3)Used in Conjunction with Standard 16550 UART; (4)Transmits/Receives either 1.63 μs or 3/16 Pulse Mode; (5)Internal or External Clock Mode; (6)Programmable Baud Rate 2.7 to 5.5 V Operation; (7)Lead Free and Green Product.

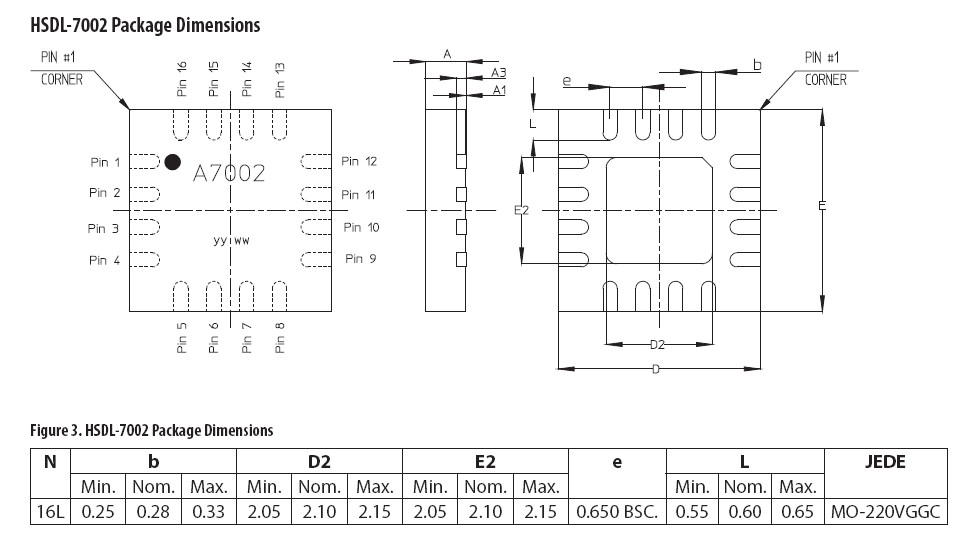

Diagrams
