Product Summary

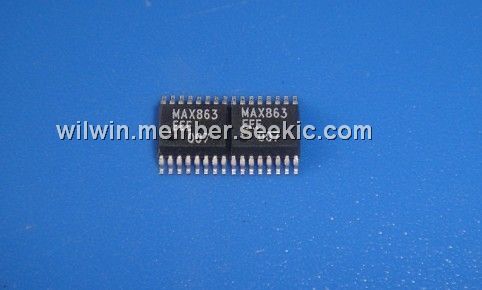

The MAX863 is a dual-output DC-DC converter. It contains two independent step-up controllers in a single compact package. This monolithic Bi-CMOS design draws only 85µA when both controllers are on. The MAX863 input range extends down to 1.5V, permitting use in organizers, translators, and other low-power hand-held products. The MAX863 provides 90% efficiency at output loads from 20mA to over 1A. This space-saving device is supplied in a 16-pin QSOP package that fits in the same area as an 8-pin SOIC. The applications of the MAX863 include 2- and 3-Cell Portable Equipment, Organizers, Translators, Hand-Held Instruments, Palmtop Computers, Personal Digital Assistants (PDAs) and Dual Supply (Logic and LCD).
Parametrics
MAX863 absolute maximum ratings: (1)VDD to GND: -0.3V to +12V; (2)PGND to GND: -0.3V to +0.3V; (3)SHDN1, SHDN2, SENSE1, LBO to GND: -0.3V to +12V; (4)EXT1, EXT2 to PGND: -0.3V to (VDD + 0.3V); (5)FB1, FB2, CS1, CS2, SEL, LBI, BOOT to GND: -0.3V to (VDD + 0.3V); (6)LBO Continuous Output Current: 15mA; (7)EXT1, EXT2 Continuous Output Current: 50mA; (8)Continuous Power Dissipation: 667mW; (9)Operating Temperature Range: -40 to +85℃; (10)Junction Temperature: +150℃; (11)Storage Temperature Range: -65 to +160℃; (12)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX863 features: (1)Smallest Dual Step-Up Converter: 16-Pin QSOP; (2)90% Efficiency; (3)1.5V Start-Up Voltage; (4)85μA Max Total Quiescent Supply Current; (5)1μA Shutdown Mode; (6)Independent Shutdown Inputs; (7)Drives Surface-Mount, Dual N-Channel MOSFETs; (8)Low-Battery Input/Output Comparator; (9)Step-Up/Down Configurable.
