The HFBR-5963LZ is a transceiver. It provides the system designer with a product to implement a range of solutions for multimode fi ber Fast Ethernet and SONET OC-3 (SDH STM-1) physical layers for ATM and other services. The HFBR-5963LZ is supplied in the industry standard 2 x 5 DIP style with an LC fi ber connector interface with an external connector shield. The applications of the HFBR-5963LZ include SONET/SDH equipment interconnect, OC-3/SDH STM-1 rate, Fast Ethernet, Multimode fi ber ATM backbone links.
Parametrics
HFBR-5963LZ absolute maximum ratings: (1)Storage Temperature TS: -40 to +100℃; (2)Lead Soldering Temperature TSOLD: +260℃; (3)Lead Soldering Time tSOLD: 10 sec; (4)Supply Voltage VCC: -0.5 to 3.63V; (5)Data Input Voltage VI: -0.5 to VCC V; (6)Diff erential Input Voltage (p-p) VD: 2.0V; (7)Output Current IO: 50mA.
Features
HFBR-5963LZ features: (1)RoHS compliant; (2)Multisourced 2 x 5 package style Operates with 62.5/125 mm and 50/125 mm multimode fiber; (3)Single +3.3 V power supply; (4)Wave solder and aqueous wash process compatibility; (5)Manufactured in an ISO 9001 certifi ed facility; (6)Full compliance with ATM Forum; (7)UNI SONET OC-3 multimode fi ber physical layer specification; (8)Full compliance with the optical performance requirements of the FDDI PMD standard; (9)Full compliance with the optical performance requirements of 100Base-FX version of IEEE802.3u; (10)+3.3 V TTL signal detect output; (11)Temperature range: 0 to +70℃ HFBR-5963LZ, -40 to +85℃ HFBR-5963ALZ.

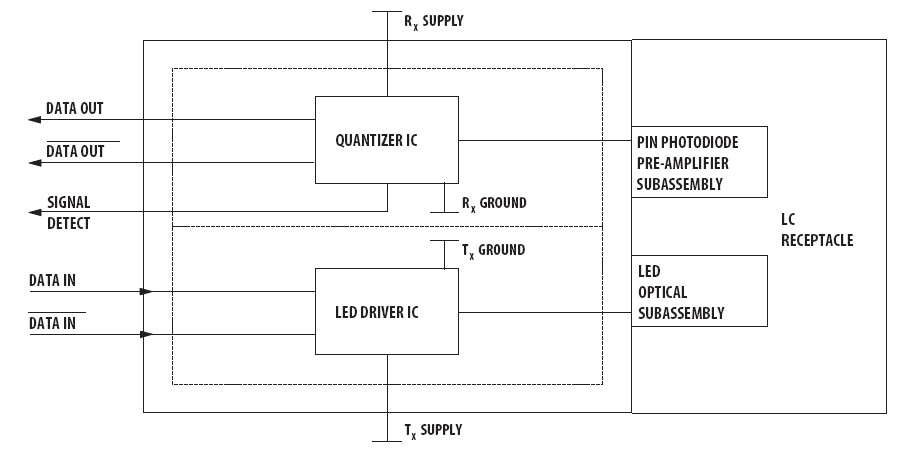

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFBR-5963LZ |
Avago Technologies |
Fiber Optic Transmitters, Receivers, Transceivers OC3/FE 2KM 2x5 LC SD LVTTL RoHS |
Data Sheet |
|
|
||||||||||||
