Product Summary
The R1527 is a High Cathode Sensitivity with Low Noise Photocathode.
Parametrics
R1527 absolute maximum ratings: (1)Supply Voltage Between Anode and Cathode : 1250Vdc; (2)Between Anode and Last Dynode : 250Vdc; (3)Average Anode Current : 0.1mA; (4)Ambient Temperature : -80 to +50℃.
Features
R1527 features: (1)Spectral Response : 185 to 680nm; (2)Cathode Sensitivity Luminous : 60μA/lm; (3)Radiant at 400nm : 60mA/W; (4)Anode Sensitivity (at 1000V) Luminous : 400A/lm; (5)Radiant at 400nm : 4.0 x 105 A/W; (6)Low Dark Current : 0.1nA; (7)Low Dark Counts (R1527P) : 10 cps.

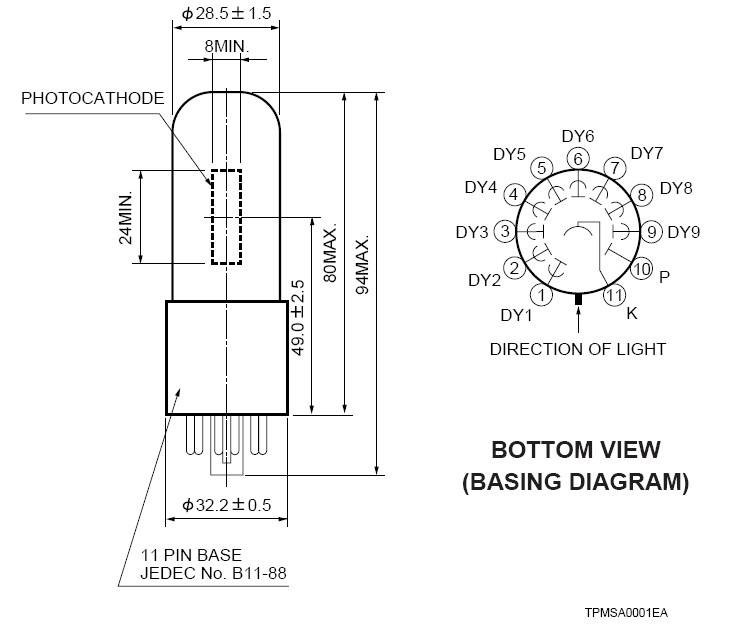

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 R1527 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
R1527P |
Other |
|
Data Sheet |
Negotiable |
|
||||
